INCUBATORS
Every Being incubator is equipped with an independent temperature system for reliable temperature control and secured with the best safety features available. Additionally, interior chambers are built from 304 stainless steel for optimal durability and hassle-free cleanup. To guarantee temperature accuracy, Being incubators come with a Pt100 temperature sensor, integrating both sensitivity and precision to your procedure.
Use our new configuration filters below to find the right laboratory incubator for your application.
Filter Option
|
|

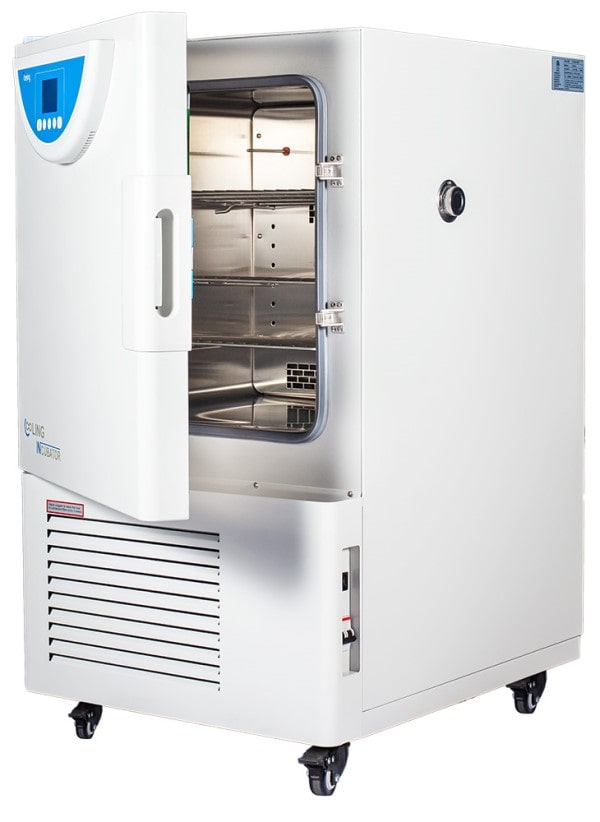

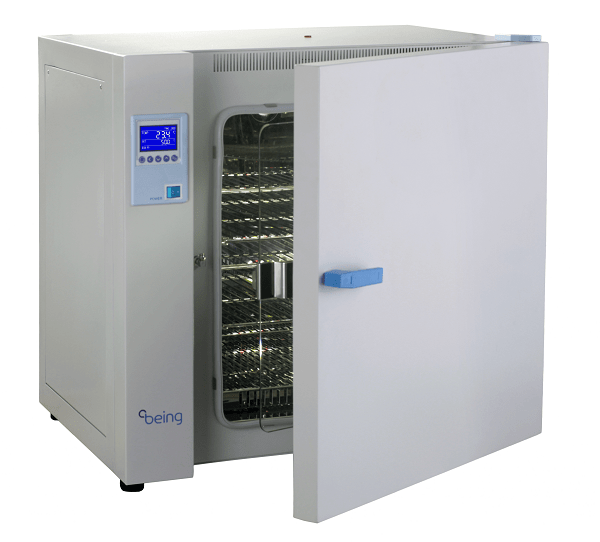

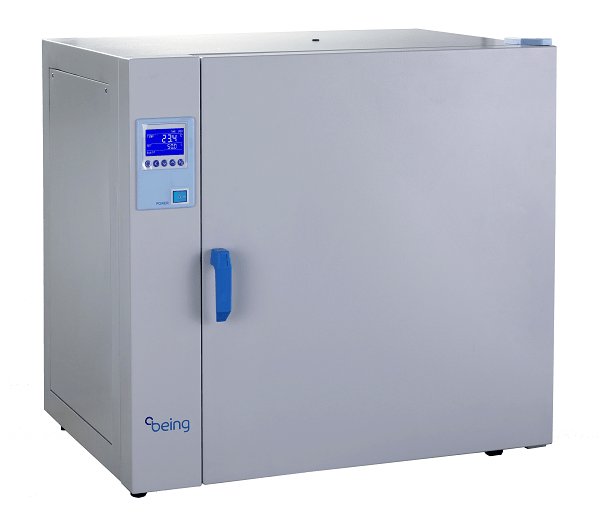

| Product Name | Cooling Incubator | Mechanical Convection Incubator | Natural Convection Incubator | Air Jacketed CO2 Incubator |
| Model | BIC | BIF | BIT | - |
| Capacity(L) | 60, 250, 120 | 16, 35, 55, 200, 120 | 16, 228, 37, 55, 123 | - |
| Temperature Range | 14 °F ~176 °F-10 to 80 °C | Ambient+9 °F ~176Amb+5~80°C | Ambient+9 °F ~176Amb+5~80°C | Ambient+5℃ ~53℃, Ambient+5℃ ~54℃, Ambient+5℃ ~51℃, Ambient+5℃ ~52℃ |
| Display Resolution | ±0.1 | ±0.1 | ±0.1 | - |
| Temperature Uniformity | ±1.8 ℉ , ±1℃ | - | - | - |
| Automatic Power on/off | √ | √ | √ | - |
| P.I.D automatic control | √ | √ | √ | - |
| Programmable function | √ | √ | √ | - |
| Data collection | USB/RS-232(option) | USB/RS-232(option) | USB/RS-232(option) | USB/RS-232(option) |
| Test hole | √ | √ | √ | - |
| Temperature deviation alarm | √ | √ | √ | - |
| Independent-over temperature protection | √ | √ | √ | - |
| Over Current Protection | √ | √ | √ | - |
| Chamber Volume | - | - | - | 6.7 Cuft 190 Liters, 2.6 Cuft 80 Liters, 8.2 Cuft 233 Liters, 5.5 Cuft 155 Liters |
| Temperature Resolution | - | - | - | 0.1 |
| Temperature Fluctuation | - | - | - | 0.1°C |
| Temperature gradient | - | - | - | ≤ ±0.5°C |
| Temperature uniformity(@37°C ) | - | - | - | ±0.3°C |
| Recovery to 37°C after 30 sec. door opening | - | - | - | < 8min |
| CO2 Range | - | - | - | (0~20)% V/V |
| CO2 Control Resolution | - | - | - | 0.001, 0.10% |
| CO2 Deviation | - | - | - | ≤±0.3%V/V |
| Recovery CO2 at 5% Concentration | - | - | - | < 5min, < 8min |
| Humidity Method | - | - | - | Natural vaporization > 95% |
| HEPA | - | - | - | Level 100(In 5 minutes), - |
| Shelves(pcs) | - | - | - | 2, 3 |
| Interior Dimension (W×H×D) | - | - | - | 530×530×690(mm), 600×630×670(mm), 480×530×610(mm), 15.8×13.8×11.3(inch)400×350×287(mm) |
| Exterior Dimension(W×H×D) | - | - | - | , 788×817×950(mm), 23.2×21.1×20.7(inch)590×536×526(mm), 670×770×880(mm) |
| Electrical Requirement | - | - | - | AC120V,60Hz |
| Power Consumption | - | - | - | 900W, 400W, 1000W, 700W |
| Catalog No. | - | - | - | BCO170190TU, BCO170150TU, BCO17080TU, BCO170230TU |
Performance and Features
-
Design, safety test results are in line with international standards DIN 12880.
-
P.I.D temperature controller provides accurate and reliable temperature control, built-in Over-temperature protection/alarm function.
-
Automatic calibration function, able to adapt to a variety of laboratory environments.
-
The BEING Contoller provides programmatically for 7 periods and 9 steps for each period making for a total of 63 programmables steps
-
Adjustable Exhaust Port/Vent(BIF)
-
Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed.
-
Available RS-232 and USB ports for external control and data collection. (Option)
Multi Step Programmable Controller
-
You can preset 7 periods and 9 steps for a total of 63 programs.
-
Time rage from 0 - 5999 minutes.
-
Temperature, time and heating rate can be set and programmed at the same time.
Convenience
-
Convenient design for easy maintenance.
-
Round curved inner angle is easy to clean.
-
Inner chamber is made from corrosion-resistant mirror stainless steel.
-
Anti-skid shelf design, easy to operate by single hand.
Safety
-
Auto Start Feature after power loss/return.
-
Temperature deviation alarm.
-
Over current protection
-
Over heat protection component protects your equipment. Will cut off the heater automatically if the temperature is out of control.
-
Independent overtemperature limit controller for added safety.
