The “Smart Choice” for laboratory equipment
PRODUCT INFO
Performance and Features
PID temperature controller.
CFC-free R404A refrigerant and a double service valve to prevent leakage.
-
Programmable function with 7 progs and 9 steps in total.
-

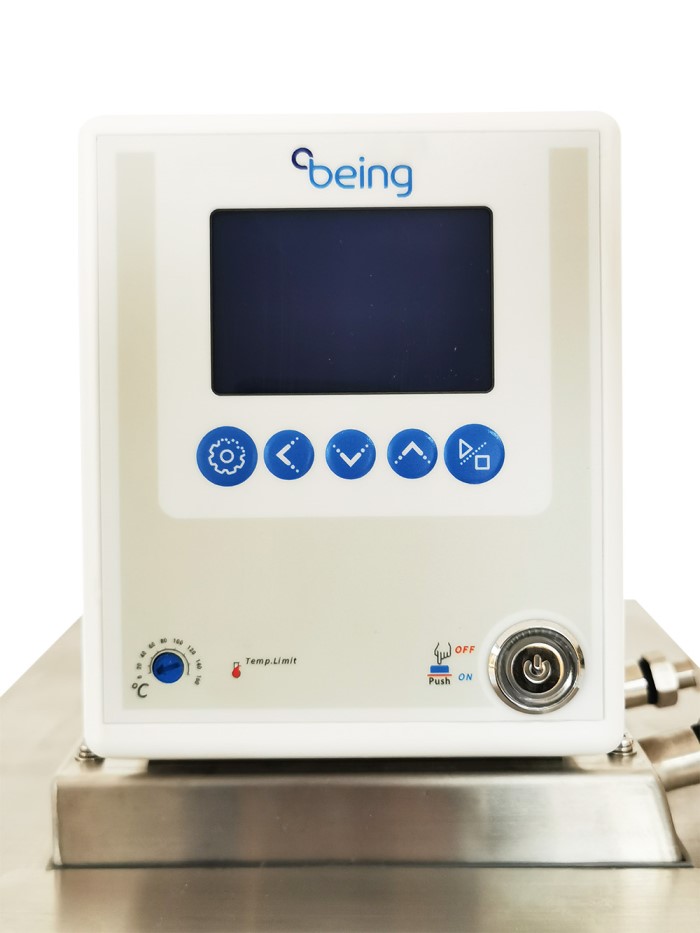

Bright LCD display with a quickly adjustable dial knob. (0.1℃ resolution)
-
Easy to set dual wait on/off adjustable timer (1 minute to 99 hr. 59 min.).
-
Maintenance-free operation with easy to clean surface.
-
Variety of accessories is available to meet application demands.
-
Both heater and bath chamber are made of corrosion-resistant, leakproof stainless steel.
-
Rounded cornered bath chamber and quick-release front grill allow for easy cleaning of the bath and condenser.
-
The standard stainless-steel bottom plate helps prevent direct contact by accessories and tubes to heating element and sensors.
-
Easy to access drain valve makes emptying of bathwater fast and easy for cleaning and moving.
-
Preset On/Off function.
Built-in power interruption protection function, automatic run after power interruption.
Independent Over-temperature protection meets DIN 12880 International standard requirements.
Temperature deviation alarm.
Over-current protection alarm.
Storage Tank Capacity (L) |
4.5 |
|---|---|
| Cooling Features | |
|
Lowest Temp Without Load (℃) |
–20℃ |
|
Temperature Range (℃) |
–20℃ to 150℃ |
|
Best Operating Temp (℃) |
≤35 |
|
Relative Humidity (%RH) |
≤65 |
|
Temperature Stability (℃) |
±0.1℃ |
|
Cooling Capacity (w) at (0℃) |
560 |
|
Cooling Capacity (w) at (–20℃) |
160 |
|
Heating Power Consumption (kW) |
1000 |
|
Refrigerant |
R404A |
| Application Features | |
|
Temperature Sensor |
pt100 |
|
Controller Display |
LCD |
|
Safety Protection |
Compressor delay start, Leakage circuit breaker, Over current / Overvoltage Protection |
|
Total Power Consumption (W) |
1500 |
|
Electrical Plug Type |
NEMA 5-15 |
|
Power Requirement |
120VAC ±10% / 60Hz |
|
Max. Recirculating Pump flow (L/min) |
8 |
| Other Features | |
|
Noise |
≤60 |
|
Net Weight (Kg) |
27 |
|
Liquid tank Dimension (mm) |
150 x 160/150 |
|
Exterior Dimendion (mm) |
290 x 520 x 710 |
|
Shipping Dimension (mm) |
410 x 700 x 920 |
| Packaging Materials | Wooden Crate |
|---|---|
| Outside Dimensions (in./mm) | |
| 28 x 16 x 37 | |
| 710 x 410 x 940 | |
| Shipping Weight (lbs./kg) | |
| 121.0 | |
| 55.0 | |
| Freight Class | 85.0 |
| Packaging Materials | Wooden Crate |
|---|---|
| Outside Dimensions (in./mm) | |
| 32 x 19 x 42 | |
| 810 x 490 x 1070 | |
| Shipping Weight (lbs./kg) | |
| 154.0 | |
| 70.0 | |
| Freight Class | 110.0 |
