The “Smart Choice” for laboratory equipment

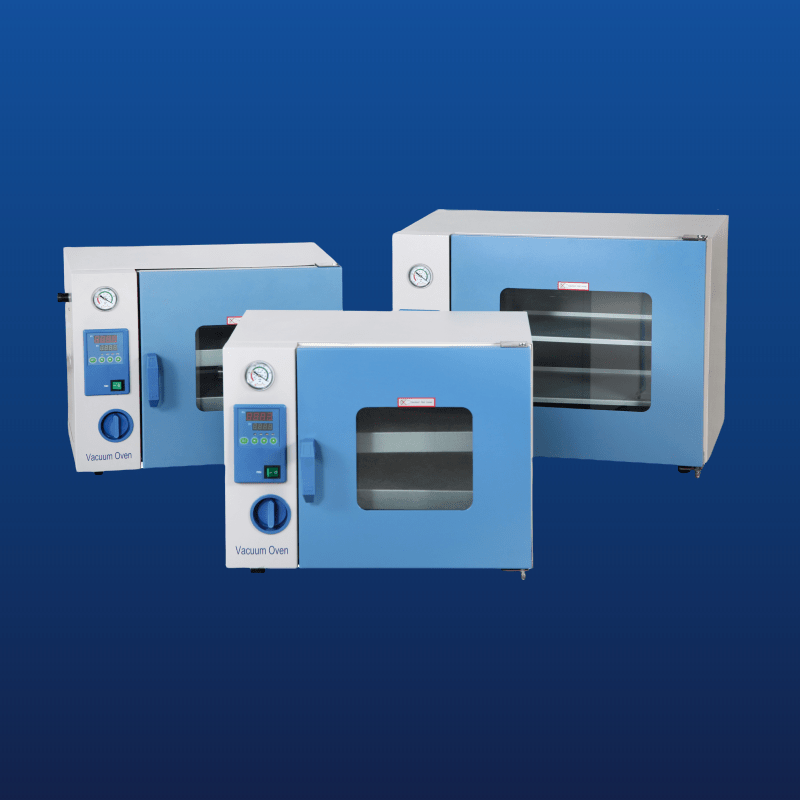

DZF-6032 Vacuum Oven

PRODUCT INFO

Vacuum oven is designed especially for drying material which is thermosensitive , oxidative, decomposable easily. It can also work with inert gas to dry some compound material.

  • 316 stainless steel, mirror polishing processing, easy to clean and maintain.
  • PID controller with over temperature alarm and timing function ensures precise and reliable control, also save more than 40% heating time.
  • A big dual layer tempered glass on the door provides good observation.
  • Door adjustment system with silicon door gasket ensures better vacuity.

Performance and Features

  • Temperature Range:Amb+10°C - 200°C.

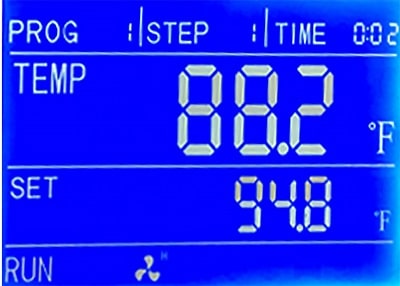

  • P.I.D temperature controller provides accurate and reliable temperature control.

  • Vacuum Range: 0 - 0.1MPa. (limit vacuum 133Pa)

  • Bundled heating provides better temperature uniformity.

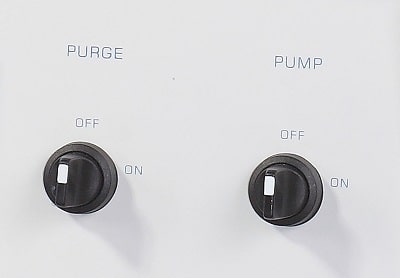

  • Inert gas interface for easy access to inert gases such as nitrogen. (optional)

  • LED lighting.(optional)

Convenience

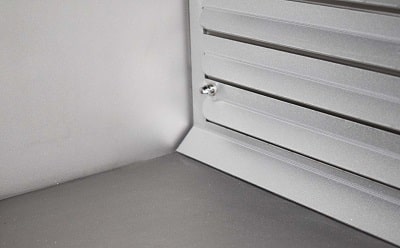

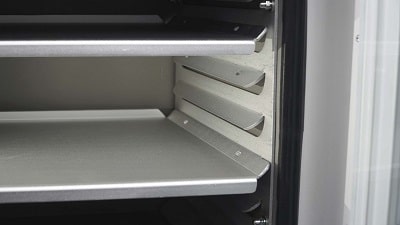

  • Inner chamber is made from corrosion-resistant mirror stainless steel.

  • Built-in toughened glass door for clear observation of internal conditions.

  • RS485 connector. (optional)

Safety & Peace of Mind

  • Temperature deviation alarm.

  • Over current protection alarm.

  • Over heat protection component protects your equipment. Will Cut off the heater automatically if the Temperature is out of control.

  • Independent overtemperature limit controller for added safety.

< 392 ℉

Internal Volume

1.1 cu ft (30 liters)

Temperature Range

Ambient+18℉~

Display Resolution

0.1

Max Degree of Vacuum

133 Pa

Timer

1~5999mins

Maximum # of Shelves

4

# of Shelves

2

Max. Load per Shelf

20Kg

Work Chamber Material

Stainless Steel

Internal Dimension (WxHxD)

320×320×300(mm)

External Dimension (WxHxD)

630×510×490(mm)

Net Weight

37Kg

Electrical Requirement

220V 50Hz

Power Consumption

850W

Shelves Material

316 SS

Warranty

2 years

Certification

CE
