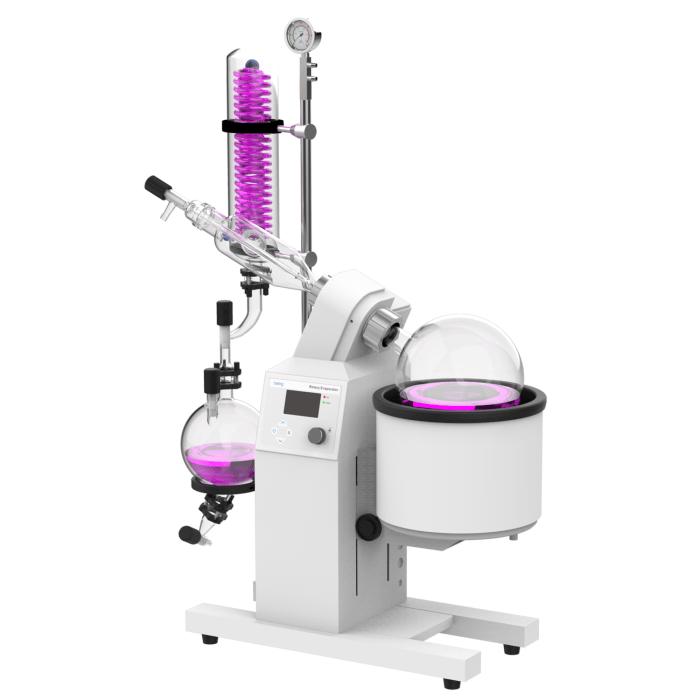

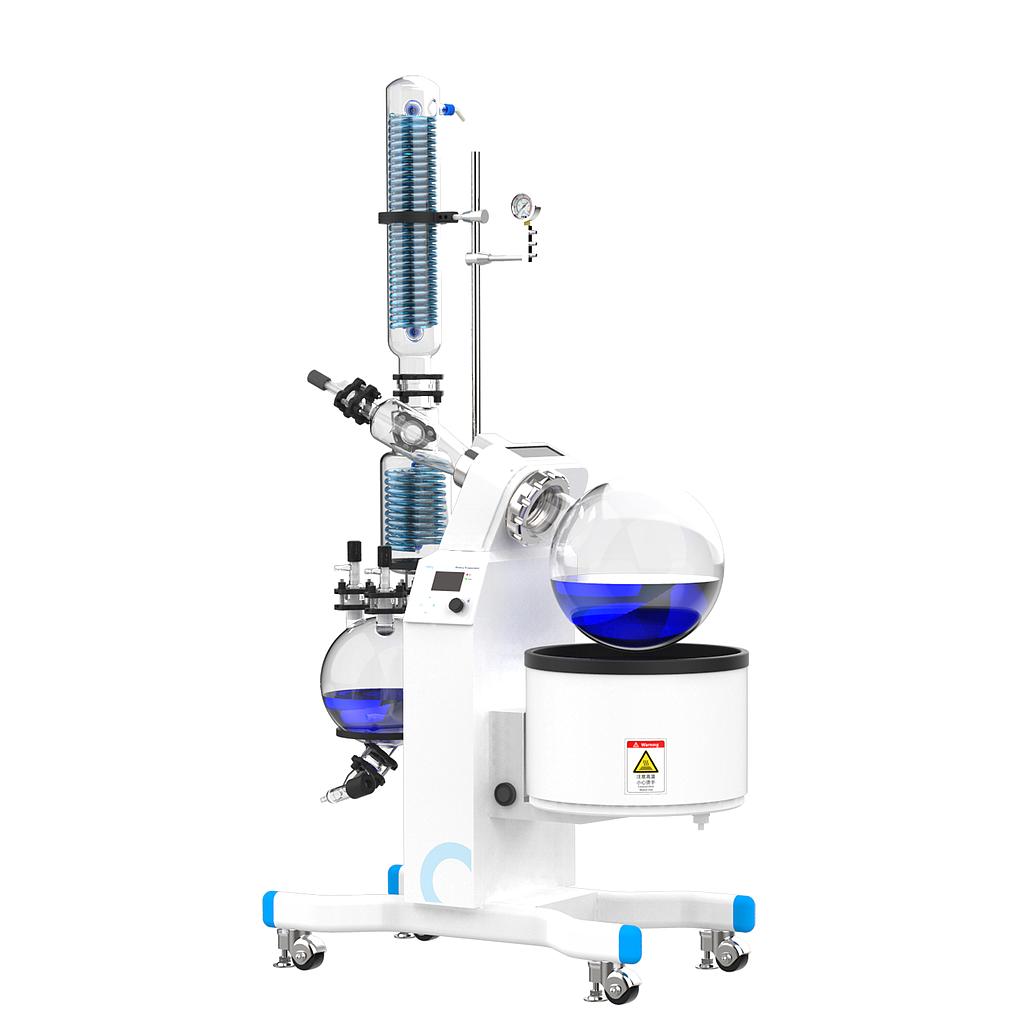

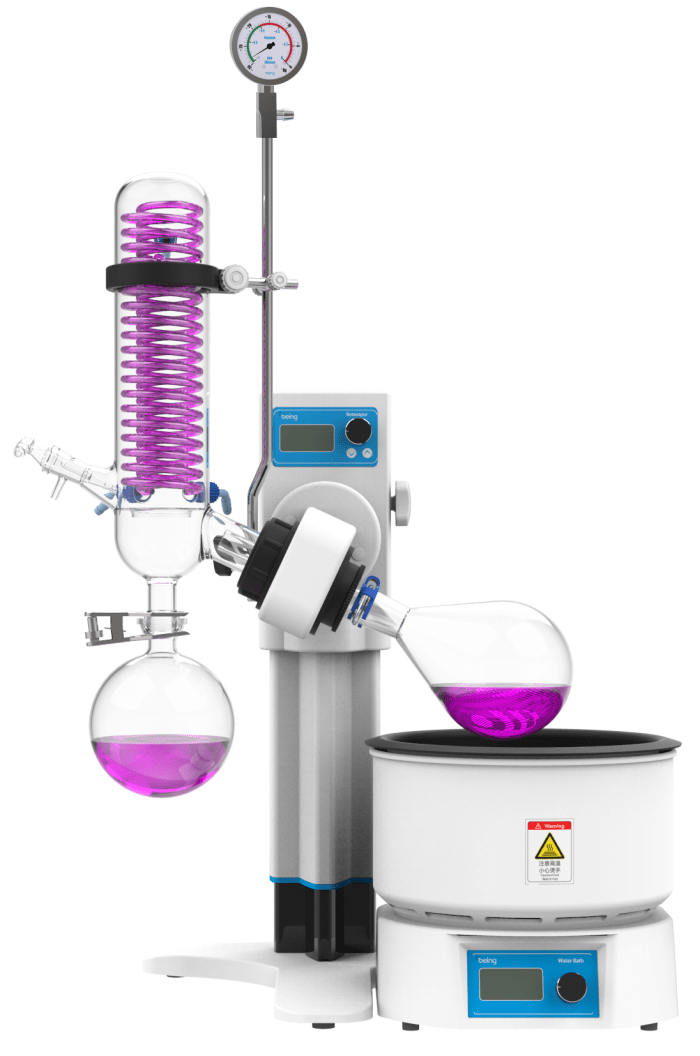

Rotary Evaporator

This combination does not exist.

Compare Wishlist

PRODUCT INFO

Rotary evaporators are mainly used for distillation or separation applications often used for medicinal chemistry, pharmaceutical, chromatography, and petrochemical fields. Rotovap systems work by increasing the rate of evaporation of the solvent through the following:

  1. Reducing the pressure to lower the solvent boiling point.

  2. Rotating the sample to increase the effective surface area.

  3. Heating the solution.

  4. Condensing the evaporated solvent in a cooled glass condenser

  • Simple design for one handed operation manually or automatically.
  • A unique PTFE sealing system provides exceptional thermostability, minimizes corrosion, and helps to ensure day in day out headache free operation.
  • Our Bath offers a dual heating mode for water and oil with overheat protection.
  • PID controller offers easy input of parameters and large LCD display for easy viewing.
  • Vacuum regulator available.

Features

  • ETL Certified for Lab use.
  • Digital temperature and speed control with simple user interface
  • Electric Bath Lift
  • Teflon Coated Bath for corrosion resistance
  • High-efficiency drain port and injection valves
  • Smaller footprint for improved workspace allocation
  • Mobility with locking casters
  • Shorter vapor path for faster evaporation and condensation
  • Direct injection capability for continuous feeding of solution
  • Continuous draining capability without the need to release vacuum or stop the system
  • 2-year warranty on all mechanical parts. Does not include glassware.
  • Programmable Controller
  • RPM set/display
  • Temperature set/display
  • Running Statis
  • Turn left/right to control
  • Press to confirm

Long press to lift or lower the bath

Press to heat the bath

Press to start/stop rotating

Evaporate ability curve

Ambient temperature: 20℃

t means: the raise of temperature

Vacuum degree curve

Vacuum pump require Flow rate: at least 50L/min

Water bath heating curve

Ambient temperature: 20℃

Medium: Water

Power: 220V 50Hz

Set: 80℃

Size 10L
Rotation Speed 20-130rpm
Evaporate Speed Max3.5L/h
Ultimate Vacuum 8mbar
Temperature Range Amb+5℃ - 99℃
Temperature stability ±1.5℃
Condensation area(㎡) 0.49
Volume of Collecting bottle 5L
Exterior Dimension (mm) W1200*D570*H1900
Water Bath Dimension (mm) Φ345*H225
Power 3300W
Barb Interface size M18
Suggest environment temp 5℃ - 35℃
Sku Number BRE15010C
Electrycity Application 220V 60Hz
ETL Certified
