Air Jacketed CO2 Incubator

This combination does not exist.

Compare Wishlist

PRODUCT INFO

Ideal for Clinical, Research, and General Laboratory Cell Culture Applications
The BEING BIO series of CO2 Incubators with 4 sizes to choose from, help guaranty that your precious cells are in an environment maximally suited to optimize their growth potential.


BEING CO2 Controller and IR Sensor:

The PID Microprocessor along with the IR Sensor precisely control temperature and CO 2 while at the same time monitoring humidity.

A Large Touch Screen Color LCD Display provides for user friendly input of parameters while at the same time providing easy viewing of the control panel from a distance.

Shelf and Water pan:

Easy-to-install and dismantle shelf system that also prevents slippage.

Humidity is provided by the stainless-steel water pan.

Test hole:

Test hole provides access for convenient measurement and calibration of gas concentration and temperature.

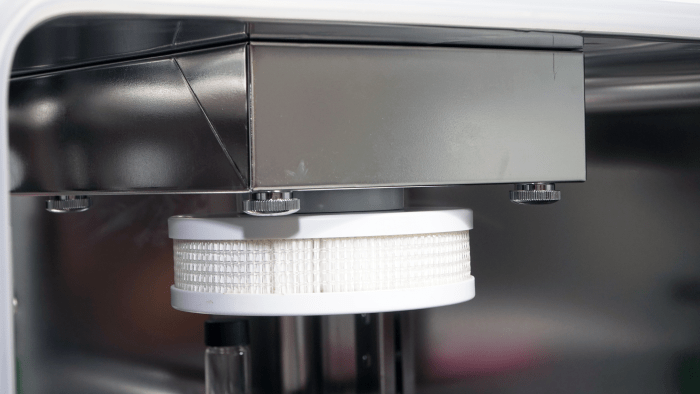

HEPA filter:

The HEPA filter is able to filter particles larger than 0.3μm at 99.998%.

Heated door and frame:

The six-sides,direct heating design provides the best performance of temperature uniformity (±0.3 °C). In addition,the heated door and door frame prevent the forming of condensation on the inner glass door.

  • Color LCD displays temperature and CO2 % along with other important parameters.

  • CO2 is accurately regulated with our IR sensor being standard.

  • A stainless-steel interior with coved corners makes for easy chamber cleaning.

  • Fan speed control.

  • Heated inner glass door minimizes condensation.

  • HEPA filter.

  • Independent temperature system provides safe guard in case standard controller fails in preventing over temperature issues.

  • CO2 regulator valve with dual stage control available.

  • Moist High Heat Decontamination Cycle.

  • IR Sensor.

The Being Controllers are Programmable and Provide Key Information on Operation and Safety!


  1. TEMP area (PV): Showing measured temperature.
  2. SET area (SV): Showing set temperature.
  3. Heating lamp: It lights up when it has heat output.
  4. TIME: Time display window, it will display running time or parameter value.

    Independent temperature limit controller

  • You can set limited alarm temperature according to the experimental temperature.
  • When over temperature, there is the alarm with sound and light, that can prompt the operator to ensure the safe experiment.

Performance and Features

  • PID controller ensures accurate and reliable set temperature control and temperature recovery upon door opening and closing.

  • Infrared sensor monitors CO2 levels independent of temperature and humidity and provides for fast recovery to set values upon door opening and closing.

  • Chamber design allows for six-sided heating ensuring exceptional temperature uniformity.

  • Easy-to-install and dismantle shelf system that also prevents slippage.

  • Inner glass door with its condensation free feature allows for easy viewing of inside samples.

  • Auto Calibration allows incubator to adapt to a variety of laboratory environments.

  • HEPA filtration along with 90°C moist heat disinfection system helps guaranty a containment free growing environment for cells.

  • All gas injection lines are purified via an in-line filter before entering chamber.

  • Integrated Stacking System allows stacking of units (BIF, BIT and BIO series) without buying a separate stacking kit

  • Accessory Port allowing other equipment such as shakers, rockers etc to be operated inside the chamber

  • Accessories, such as CO2 Regulator etc

Convenience

  • Inner chamber is made from corrosion-resistant mirror stainless steel.

  • Large LCD Touch Screen Display makes for easy input of data.

  • Graphic Display of real time parameters of temperature, CO2 concentration, humidity, and door opening and closing.

  • Round coved corners make for easy cleaning.

  • Test hole provides access for convenient measurement and calibration of gas concentration and temperature.

  • Stackable design eliminates the need to purchase a separate stacking accessory.

  • Anti-skid design of the shelf ensures safety of your experiment.

Safety & Peace of Mind

  • Various alarm systems both audible and visual communicate protection levels for power, temperature, CO2 concentration, humidity level, faulty door closing, and other malfunction information.

  • 3 year parts and labor warranty.

Chamber Volume 2.8 cu ft (80 liters)
Temperature Range

Ambient+5℃ ~51℃
Ambient +40℉ ~123.8℉

Temperature Resolution 0.1
Temperature Fluctuation 0.1℃
Temperature Gradient ≤ ±0.5℃
Temperature uniformity(@37℃ ) ±0.3℃
Recovery to ... < 8min
CO2 Range (0~20) % V/V
CO2 Control Resolution 0.001
Recovery CO2 at 5% Concentration ≤±0.3%V/V
Humidity Method Natural vaporization > 95%
HEPA Level 100(In 5 minutes)
# of Shelves 2
Internal Dimension (WxHxD) 400×450×500(mm)
External Dimension (WxHxD) 588×637×890(mm)
Electrical Requirement AC120V,60Hz
Power 500W
Cat. No.  17080TU
Warranty 3 years
Certification ETL


ETL Certified
