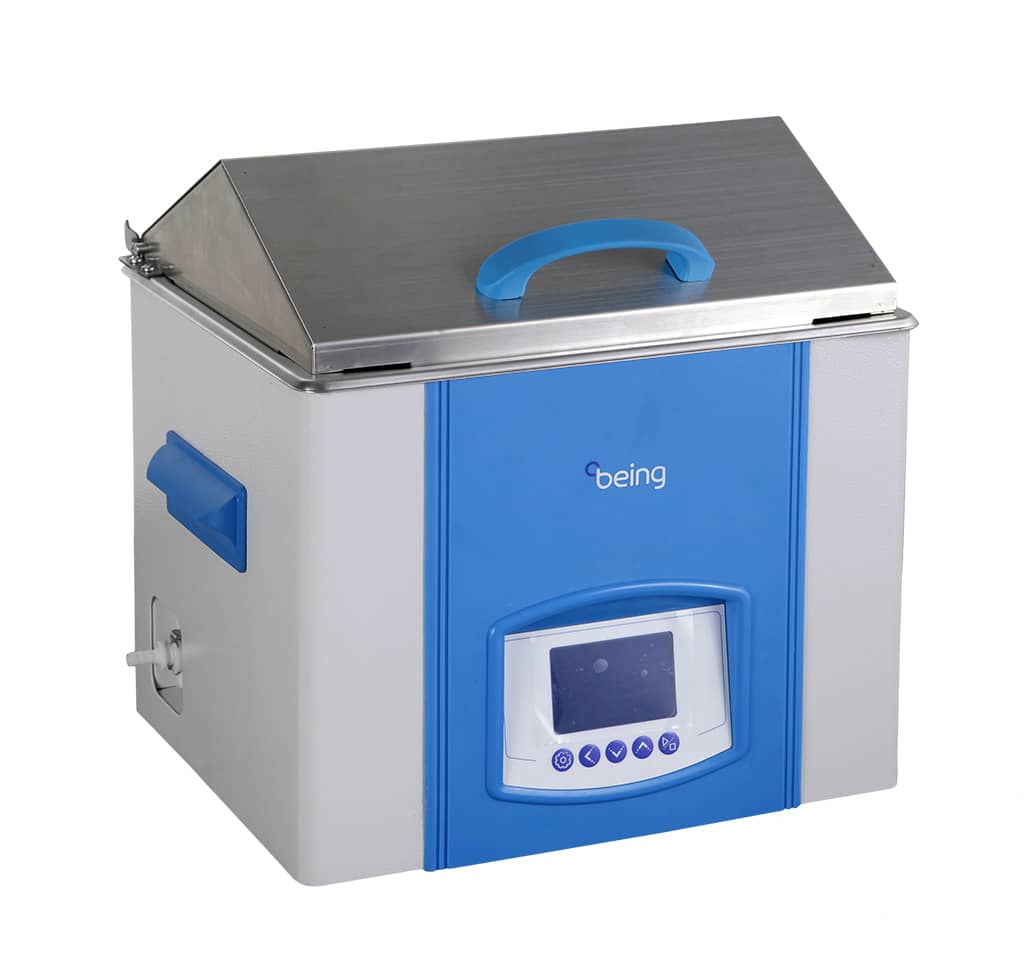

BEING Scientific General Purpose Laboratory Water Baths provide users with a constant temperature environment that only can be obtained when samples are totally immersed in water. Our line of lab water baths come in a variety of sizes and are suitable for direct heating and auxiliary heating of biological, chemical, physical, plant, chemical, and other experimental samples. Ideal applications for each BEING Water Bath include routine laboratory temperature control, E.Coli detection, sample thawing, bacterial detection, incubation microbial experiments, cell culture, and food testing pretreatment.
Performance and Features
PID temperature controller.
Temperature Range:Amb+5℃ - 99℃
Convenience
Large LCD display screen and interface provides for user-friendly operation.
Easy to set Adjustable Timer.(1 minute to 5,999 minutes)
Maintenance-free operation with easy to clean surface.
Variety of Accessories are available to meet application demands.
Both heater and bath chamber are made of corrosion-resistant stainless steel.
Bath Chamber is easy to clean with its curved corner design.
The standard stainless-steel bottom plate, helps prevents direct contact by accessories and tubes to heating element and sensors.
Drain valve makes emptying of bath water fast and easy for cleaning and moving.
Integrated Stainless Steel Gable Cover
Carry handles for easy transportation and lifting
Safety & Peace of Mind
Built-in power interruption protection function, automatic run after power interruption.
Independent Over-temperature protection meets DIN 12880 International standard requirements.
Temperature deviation alarm.
Over current protection alarm.
Low-Level Water Sensor Alarm” indicates that water level is dangerously low, and water needs to be added.
Capacity |
5L |
---|---|
Temperature Range |
Ambient+9 to 212℉ |
Stability @37℃ |
±0.2C |
Uniformity @37℃ |
±0.3℃ / ±0.54℉ |
Timer (hh:mm) |
00:01 ~ 99:59 |
Interior Dimensions (WxHxD) |
11.0×5.9×5.1(inch) 280×150×130 (mm) |
Exterior Dimensions (WxHxD) |
13.6×13.4×7.9 (inch) 345×340×200 (mm) |
Net Weight |
11 lb / 5kg |
Electrical Plug Type |
NEMA 5-15 |
Power Supply |
120V (±10%) 50/60Hz |
Power Consumption |
500W |
Temperature Resolution |
0.1 |
Tracking Alarm |
≤0.2℃ / ≤3.6℉ |
Catalog Number |
BW15005U |
Warranty |
2 years |
Yes.
BEING puts a product identification label above the power cord.
Yes.
Yes. We would need the unit's model and serial numbers if the certificate didn't come with your BEING instrument.
Packaging Materials | Paper box |
---|---|
Outside Dimensions (in./mm) | |
17 x 11 x 17 | |
420 x 280 x 420 | |
Shipping Weight (lbs./kg) | |
18.04 | |
8.2 | |
Freight Class | 100.0 |
Packaging Materials | Paper box with pallet |
---|---|
Outside Dimensions (in./mm) | |
35 x 31 x 27 | |
900 x 780 x 680 | |
Shipping Weight (lbs./kg) | |
140.8 | |
64.0 | |
Freight Class | 110.0 |
Packaging Materials | Paper box |
---|---|
Outside Dimensions (in./mm) | |
24 x 16 x 17 | |
600 x 400 x 440 | |
Shipping Weight (lbs./kg) | |
38.06 | |
17.3 | |
Freight Class | 92.5 |
