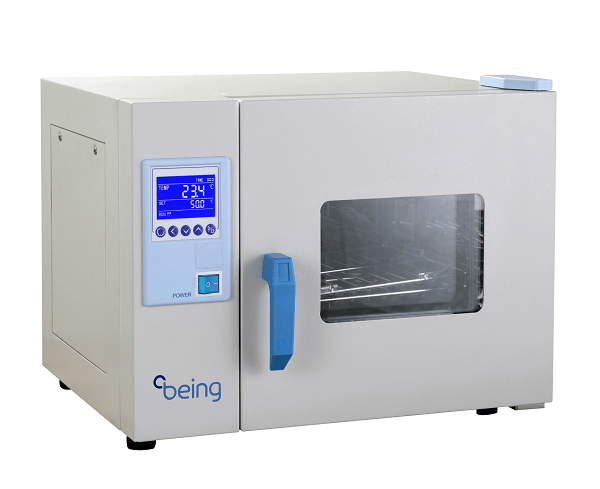

Natural Convection Incubator

This combination does not exist.

Compare Wishlist

PRODUCT INFO

Laboratory incubator applications are diverse because of the many different industries and protocols they are used for, so we have designed the BEING LAB Incubator family to accommodate a wide range of applications. The BEING Controller guarantees temperature accuracy and control. We engineer the best safety features into all our products assuring piece of mind to our customers.


  • Colorful LCD display.

  • Double door with inner glass door allowing full-width viewing of samples.

  • Interior Chamber made from 304 stainless steel with a mirror polished finish making for easy cleaning.

  • Anti-tilt shelving helps avoid accidents when shelves are moved.

  • Top centered portal allows real-time testing of internal chamber temperature using external temperature measuring equipment.

  • Pt100 temperature sensor provides high-temperature sensitivity and accuracy.

  • The BEING Controller provides programmability for 7 periods and 9 steps for each period making for a total of 63 programmable steps.

Performance and Features

  • Temperature Range:Amb+10°C ~80°C .

  • P.I.D temperature controller provides accurate and reliable temperature control.

  • Natural convection heating allows the sample temperature to be uniform, suitable for sterilization, powder drying andhigh temperature storage.

  • Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed.

Convenience

  • Volume(16L~200L).

  • Inner chamber is made from corrosion-resistant mirror stainless steel.

  • Round curved inner angle is easy to clean.

  • Anti-skid shelf design, easy to operate by single hand.

Safety & Peace of Mind

  • Auto Start Feature after power loss/return.

  • Temperature deviation alarm.

  • Over temperature set point alarm.

  • Over current protection alarm.

  • Independent Over-temperature protection meets DIN 12880 International standard requirements provides you double protection.

Chamber Volume 0.6 cu ft (18 liters)
Temperature Range ambient+9~176℉
Temperature Stability ±0.2
Display Resolution 0.1
Uniformity at 100℃ ±3.0
Uniformity at 37℃ ±1.0
Heated to 37℃ 30min
Max # of Shelves 5
Max. Load per Shelf 20Kg
Internal Dimension (WxHxD) 11.2 x 11.8 x 8.6 inch
External Dimension (WxHxD) 20.0 x 14.7 x 15.6 inch
Net Weight 23Kg
Timer 1~5999mins
Electrical Requirement AC120V,60Hz
Power 100W
110V Cat. No. BH15116U
220V Cat. No BH15116C

A20.0
B11.2
C1.0
D3.0
E11.8
F14.7
G15.6
H8.6

Package Includes:

  • Chamber Main Unit: 1 pc
  • Stainless Steel Rack and Brackets: 2 sets
  • 3-prong Power Cord: 1 pc
  • Spare Fuse: 2 pcs
  • User's Manual: 1 pc


ModelBIT
Capacity(L)16
Temperature RangeAmbient+9 °F ~176
Amb+5~80°C
Display Resolution±0.2
Temperature Uniformity±1°C
Automatic Power on/off
P.I.D automatic control
Programmable function
Data collectionUSB/RS-232(option)
Test hole
Temperature deviation alarm
Independent-over temperature protection
Over Current Protection
