PRODUCT INFO

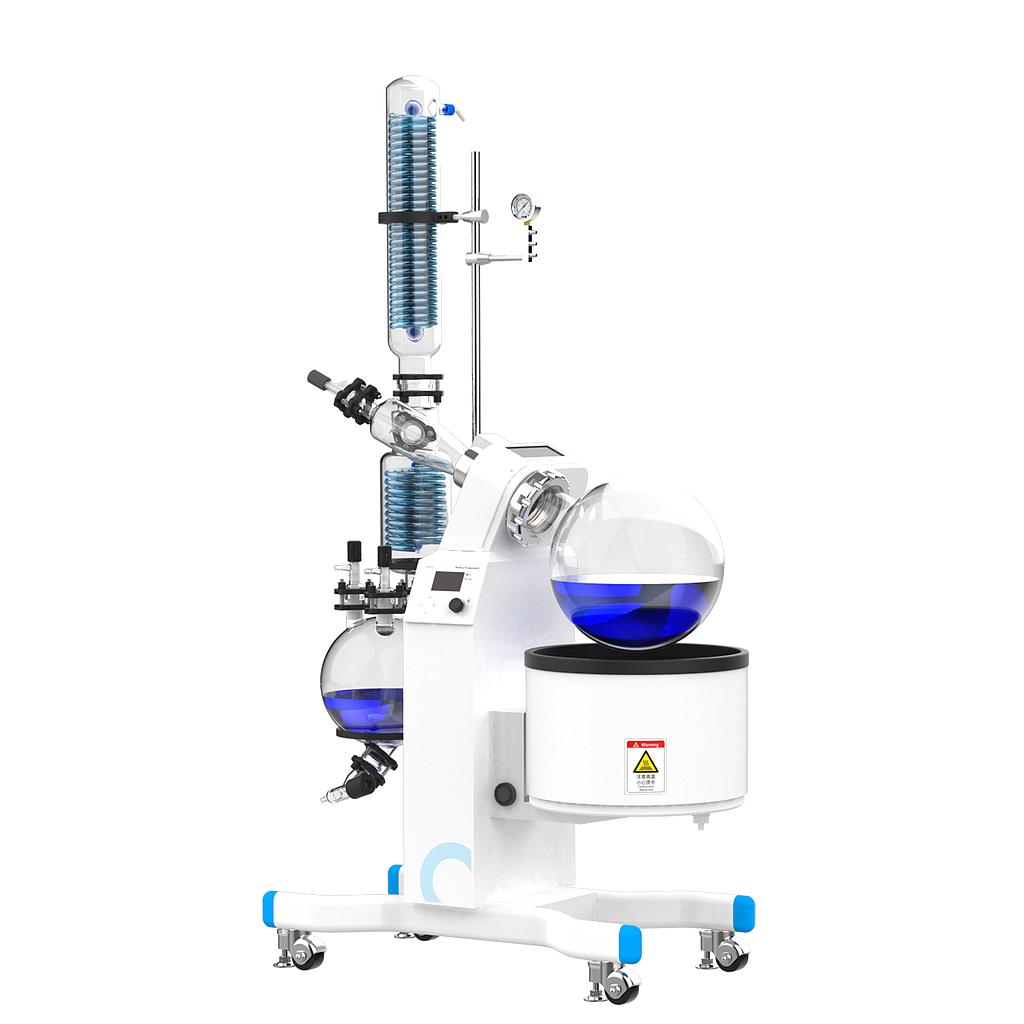

Rotary evaporators are mainly used for distillation or separation applications often used for medicinal chemistry, pharmaceutical, chromatography, and petrochemical fields. Rotovap systems work by increasing the rate of evaporation of the solvent through the following:
- Simple design for one handed operation manually or automatically.
- A unique PTFE sealing system provides exceptional thermostability, minimizes corrosion, and helps to ensure day in day out headache free operation.
- Our Bath offers a dual heating mode for water and oil with overheat protection.
- PID controller offers easy input of parameters and large LCD display for easy viewing.
- Vacuum regulator available.
Features
- ETL Certified for Lab use.
- Digital temperature and speed control with simple user interface
- Electric Bath Lift
- Teflon Coated Bath for corrosion resistance
- High-efficiency drain port and injection valves
- Smaller footprint for improved workspace allocation
- Mobility with locking casters
- Shorter vapor path for faster evaporation and condensation
- Direct injection capability for continuous feeding of solution
- Continuous draining capability without the need to release vacuum or stop the system
- 2-year warranty on all mechanical parts. Does not include glassware.
- Programmable Controller
- RPM set/display
- Temperature set/display
- Running Statis
- Turn left/right to control
- Press to confirm
Long press to lift or lower the bath
Press to heat the bath
Press to start/stop rotating
Evaporate ability curve
Ambient temperature: 20℃
Vacuum degree curve
Vacuum pump require Flow rate: at least 50L/min
Water bath heating curve
Ambient temperature: 20℃
Medium: Water
Power: 220V 50Hz
Set: 80℃
Size |
5L |
|---|---|
Rotation Speed |
20-140rpm |
Evaporate Speed |
Max.2L/h (Water) |
Ultimate Vacuum |
8mbar (-29.8 in. Hg) |
Temperature Range |
Ambient+5℃ to 99℃ |
Temperature stability |
±1℃ |
Condensation area(㎡) |
0.28 |
Volume of Collecting Bottle |
3L |
Exterior Dimension (mm) |
W860*D410*H1120 |
Water Bath Dimension (mm) |
Φ280*H175 |
Lifting Height (mm) |
150 |
Power |
2300W |
Barb Interface size |
M14 |
Suggest environment temp |
5℃ - 35℃ |
Safety |
Dry-run, over-temp shut-off, built-in circuit breaker |
Glass Material |
GG-17 High Borosilicate |
Maximum Load (Kg) |
2.5 |
SKU Number |
BRE15005U |
Electricity Application |
110VAC 60Hz |
No.
Yes.
BEING puts a product identification label above the power cord.
Yes.
Yes. We would need the unit's model and serial numbers if the certificate didn't come with your BEING instrument.
| Packaging Materials | Wooden Crate |
|---|---|
| Outside Dimensions (in./mm) | |
| 31 x 19 x 36 | |
| 790 x 470 x 915 | |
| Shipping Weight (lbs./kg) | |
| 143.0 | |
| 65.0 | |
| Freight Class | 92.5 |
| Packaging Materials | Wooden Crate |
|---|---|
| Outside Dimensions (in./mm) | |
| 43 x 28 x 57 | |
| 1080 x 700 x 1450 | |
| Shipping Weight (lbs./kg) | |
| 264.0 | |
| 120.0 | |
| Freight Class | 100.0 |
| Packaging Materials | Wooden Crate |
|---|---|
| Outside Dimensions (in./mm) | |
| 43 x 28 x 57 | |
| 1080 x 700 x 1450 | |
| Shipping Weight (lbs./kg) | |
| 358.6 | |
| 163.0 | |
| Freight Class | 100.0 |
| Packaging Materials | Paper box with pallet |
|---|---|
| Outside Dimensions (in./mm) | |
| 26 x 25 x 24 | |
| 670 x 630 x 610 | |
| Shipping Weight (lbs./kg) | |
| 61.6 | |
| 28.0 | |
| Freight Class | 150.0 |
| Packaging Materials | Wooden Crate |
|---|---|
| Outside Dimensions (in./mm) | |
| 48 x 27 x 63 | |
| 1220 x 680 x 1600 | |
| Shipping Weight (lbs./kg) | |
| 411.4 | |
| 187.0 | |
| Freight Class | 110.0 |
